2025 Ford F-150 Engine Options
Ford F-150 Engines: Key Points
- The Ford F-150 engines can achieve a class-leading 13,500-pound towing capacity1 and best-in-class 2,440-pound payload capacity.2
- The Ford F-150 engine options cover everything from standard versatility to available hybrid power and even supercharged V-8 madness.
- Expect excellent efficiency, like an EPA-estimated 19/25 MPG (City/Highway) from the standard engine.3 The hybrid option has an EPA-estimated 22/24 MPG (City/Highway).3
- All the Ford F-150 engines are built to do tough jobs, make your drive more enjoyable, and last for years of reliable driving.
For the 2025 model year, the Ford F-150 engine specs can vary in six ways. Featuring class-leading 13,500-pound maximum tow ratings,1 enhanced MPG, and all-around fun, this engine lineup is your way to get the power and performance you seek in a truck. If you're wondering "Which Ford F-150 engine is best?" then read this guide that covers the six F-150 engines and visit Jones Ford Casa Grande to test-drive the lineup.
2025 Ford F-150 Engine Options: An Overview of Each Motor
2.7-liter EcoBoost V-6
The 2.7-liter F-150 EcoBoost engine is standard on the entry-level XL trim, along with the affordable STX and XLT models. Despite this position in the lineup, it makes a massive output of 325 horsepower and 400 pound-feet of torque, and develops that power quickly off the line: Peak horsepower arrives at 5,000 RPM, and peak torque arrives at 3,000 RPM.
As the first of the Ford F-150 engines, the 2.7-liter EcoBoost V-6 kicks things off with a maximum towing capacity of 8,400 pounds4 and a maximum payload capacity of 1,775 pounds,5 blending exceptional value with massive strength. Additionally, this engine is the second-most efficient option in the Ford F-150 engine lineup, providing up to an EPA-estimated 19/25 MPG (City/Highway).3

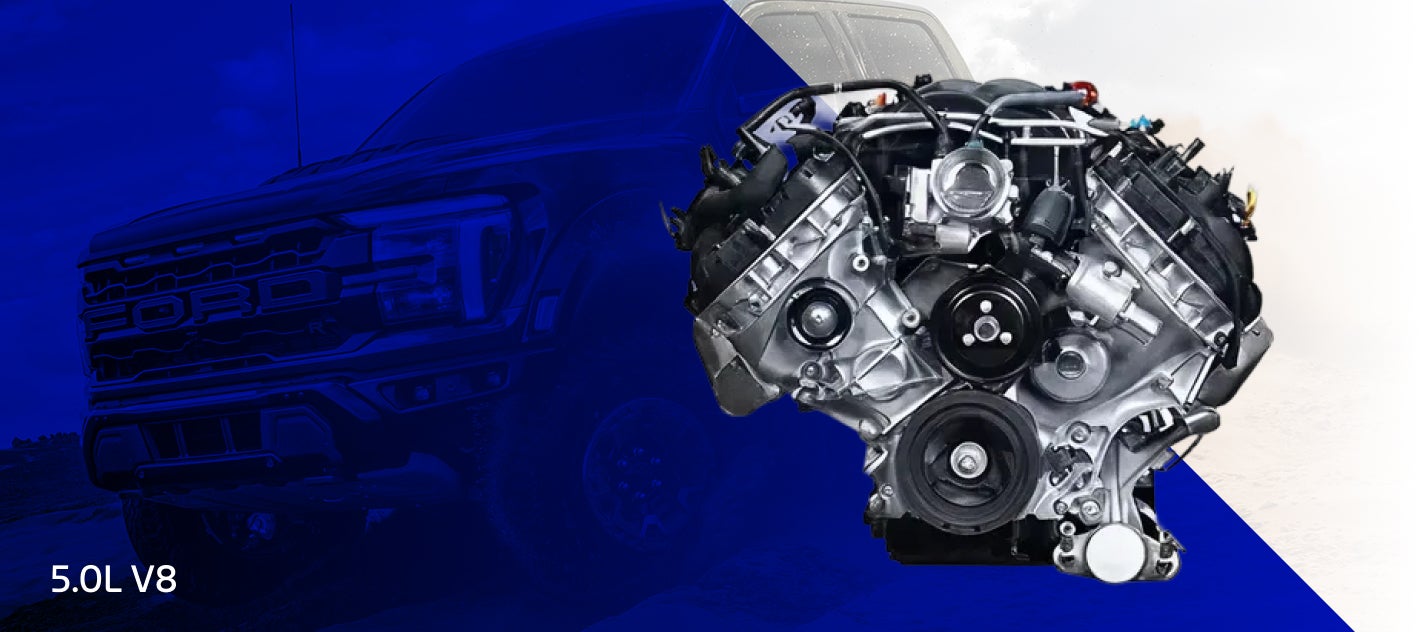

5.0-liter V-8
A classic option and a fan-favorite member of the Ford F-150 engines, this hearty V-8 has the second-highest towing and payload capacities in the lineup, letting you tow up to 12,900 pounds4 and haul up to 2,225 pounds of payload5 thanks to its 400 horsepower and 410 pound-feet of torque. Torque is made at fairly low RPM, coming in at its fullest at 4,250 RPM.
A V-8 is almost impossible to match when it comes to passenger-pleasing smoothness while accelerating, and the rumble it makes sounds great, too. Usually, this comes at the cost of efficiency, but thanks to advanced technologies and engineering, the 5.0-liter Ford F-150 V-8 engine delivers up to an EPA-estimated 16/24 MPG (City/Highway).3 Find it as standard on the F-150 Tremor and Lariat; you can also option it into an F-150 XL, STX, XLT, or Raptor model.

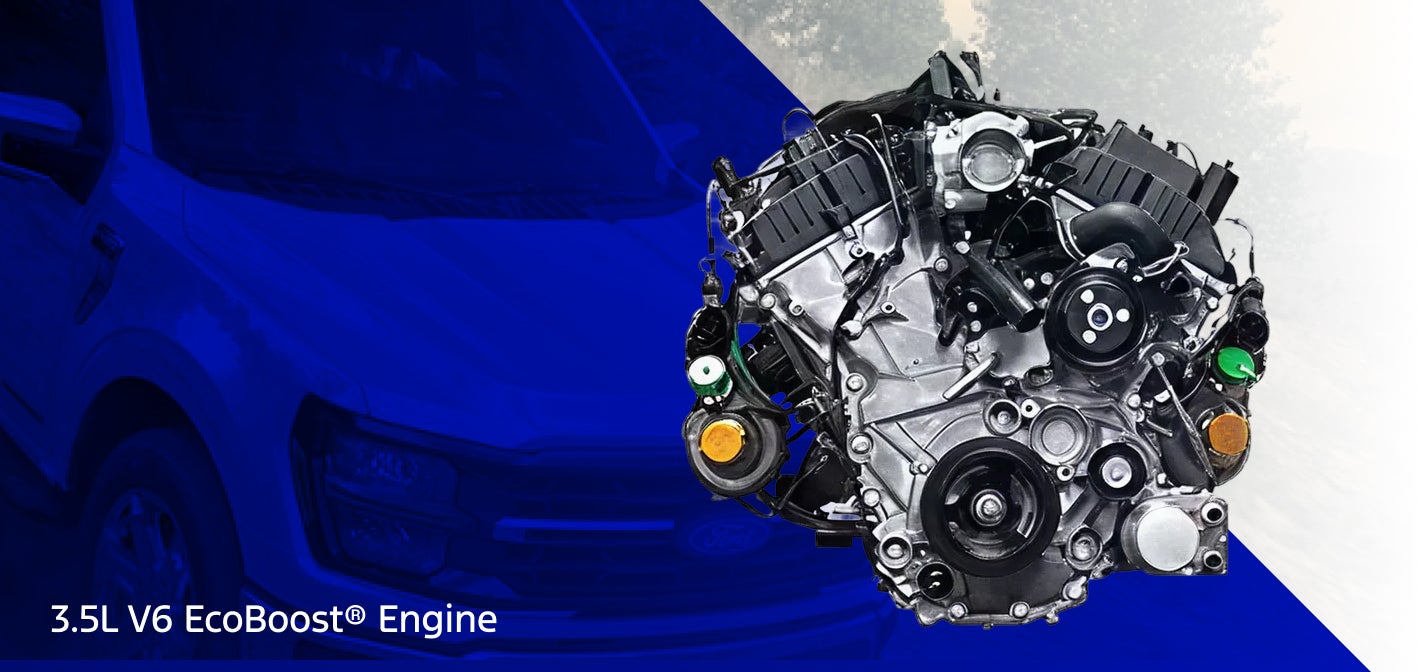

3.5-Liter EcoBoost V-6
The practical Ford F-150 engine specs reach their highest here – this engine is responsible for the F-150's maximum towing capacity of 13,500 pounds1 and also can achieve the truck's maximum possible payload capacity of 2,440 pounds.2 Those capacities are made possible by its 400 horsepower and 500 pound-feet of torque, and it makes peak torque at 3,000 RPM to get larger loads moving off the line.
You can think of this V-6 as a stronger alternative to the V-8. It also goes further with an EPA-estimated 17/25 MPG (City/Highway).3 Choose the F-150 King Ranch or Platinum to get this engine as standard. Meanwhile, the F-150 XL, XLT, Tremor, and Lariat offer it as an optional upgrade.
3.5-Liter PowerBoost Full Hybrid V-6
The F-150 hybrid engine returns for 2025. Despite what "hybrid" may make you think, it outclasses the previous engines for power, delivering 430 horsepower and 570 pound-feet of torque alongside its EPA-estimated 22/24 MPG (City/Highway).3 It does offer a lower maximum towing capacity of 11,200 pounds,4 but this can be a worthy trade-off considering how much more efficient it is.
This torque output also comes in fully at 3,000 RPM, making it shockingly quick off the line. None of the F-150 trims come standard with the PowerBoost engine, but it can be optioned into the XLT, Lariat, King Ranch, or Platinum trims as an upgrade.

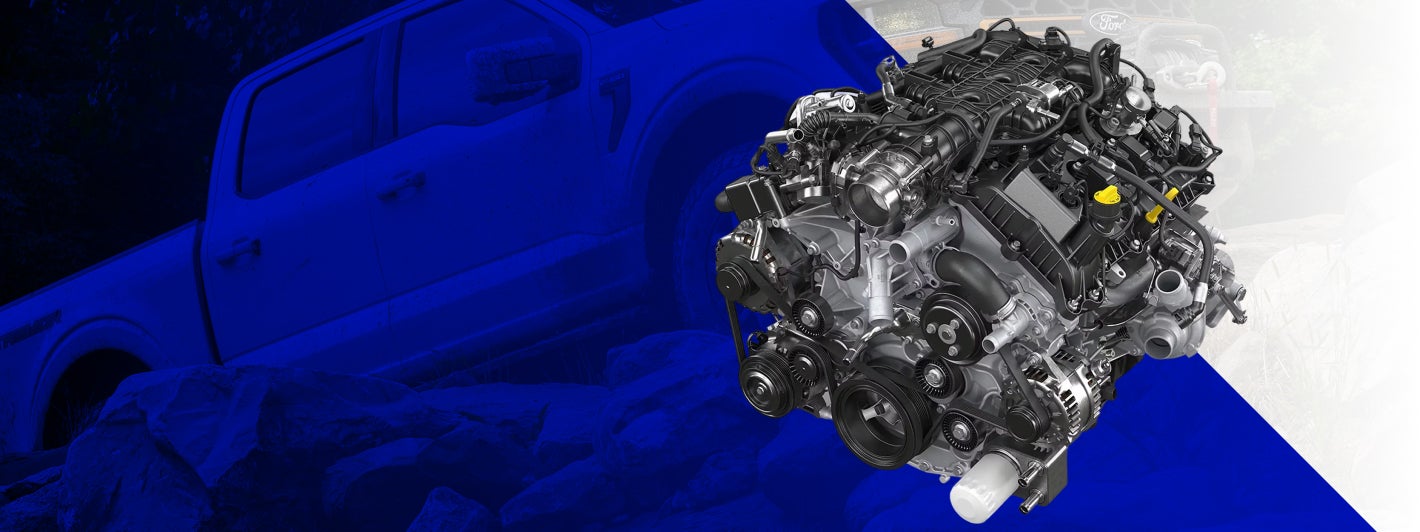

High-Output 3.5-Liter EcoBoost V-6
The 2025 Ford F-150 horsepower rises higher here, reaching a huge output of 450 horsepower. This engine is only available on the Ford F-150 Raptor and can be harnessed using our new Ford vehicle specials so you can dominate off-road challenges. Making 510 pound-feet of torque and letting you tow 8,200 pounds,4 it's aimed more toward thrill-seekers than people looking for a work truck.

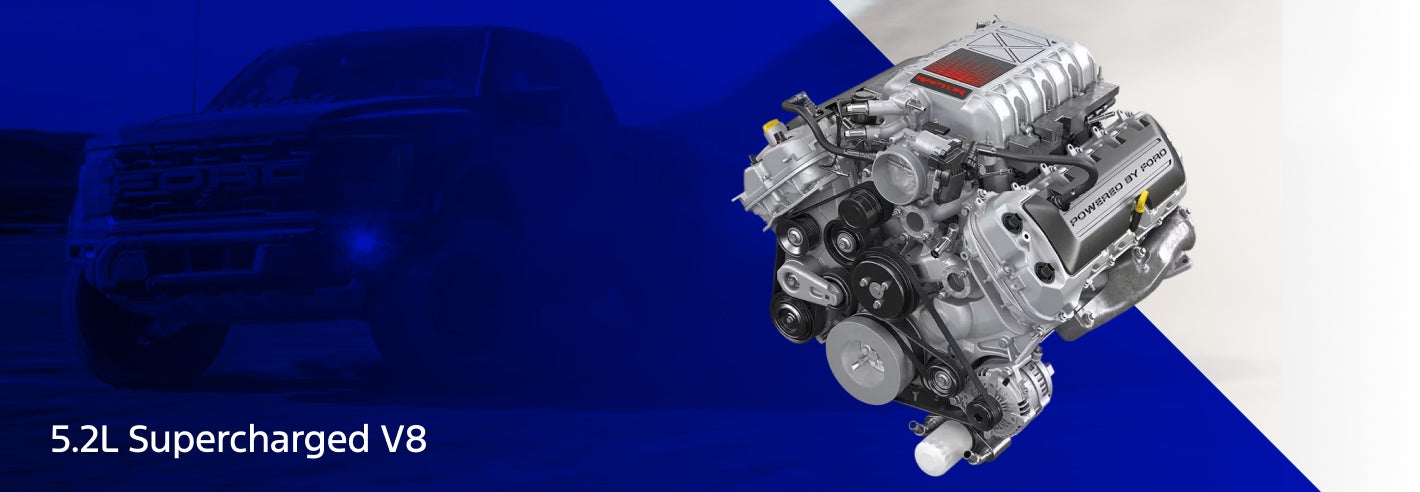

High-Output Supercharged 5.2-Liter V-8
The most explosive entry into our new Ford inventory, this engine is exclusively found in the F-150 Raptor R. An output of 720 horsepower and 640 pound-feet of torque comes standard, and the torque hits full steam at 4,250 RPM to throw you back in your seat. This engine is simply the top option for those in search of extreme fun in a full-size truck.
Ford F-150 Engine Specs Comparison Chart
| 2.7L EcoBoost V-6 | 5.0L V-8 | 3.5L EcoBoost V-6 | 3.5L PowerBoost Full Hybrid V-6 | High-Output 3.5L EcoBoost V-6 | High-Output Supercharged V-8 | |
|---|---|---|---|---|---|---|
| Horsepower: | 325 | 400 | 400 | 430 | 450 | 720 |
| Torque: | 400 lb-ft | 410 lb-ft | 500 lb-ft | 570 lb-ft | 510 lb-ft | 640 lb-ft |
| Peak Power RPM (Horsepower/Torque): | 5,000 / 3,000 RPM | 6,000 / 4,250 RPM | 6,000 / 3,100 RPM | 6,000 / 3,000 RPM | 5,250 / 3,000 RPM | 6,650 / 4,250 RPM |
| Transmission: | 10-speed SelectShift automatic | 10-speed SelectShift automatic | 10-speed SelectShift automatic | 10-speed SelectShift automatic | 10-speed SelectShift automatic | 10-speed SelectShift automatic |
| Maximum Towing Capacity: | 8,400 lbs4 | 12,900 lbs4 | 13,500 lbs1 | 11,200 lbs4 | 8,200 lbs4 | 8,700 lbs4 |
| Maximum Payload Capacity: | 1,775 lbs5 | 2,225 lbs5 | 2,440 lbs2 | 1,750 lbs5 | 1,400 lbs5 | 1,400 lbs5 |
| Fuel Requirement: | Regular unleaded gasoline | Regular unleaded gasoline | Regular unleaded gasoline | Regular unleaded gasoline | Premium unleaded gasoline | Premium unleaded gasoline |
| Maximum EPA-Est. Fuel Economy (City/Hwy/Comb.): | 19 / 25 / 21 MPG3 | 16 / 24 / 19 MPG3 | 17 / 25 / 20 MPG3 | 22 / 24 / 23 MPG3 | 14 / 18 / 16 MPG3 | 10 / 15 / 12 MPG3 |
| Standard On: |
|
|
|
N/A | F-150 Raptor | F-150 Raptor R |
| Available On: | N/A |
|
|
|
N/A | N/A |
2024 vs. 2025 Ford F-150 Engines
For 2025, the same engines as last year are offered, though there are minor differences in payload and towing capacities. See more details in the chart below. Then, to get into Ford F-150 vehicles from the latest model year or find a high-quality used truck, visit Jones Ford Casa Grande.
| 2024 Ford F-150 | 2025 Ford F-150 | |
|---|---|---|
| Standard Engine: | 2.7L EcoBoost V-6 | 2.7L EcoBoost V-6 |
| Standard Horsepower: | 325 | 325 |
| Standard Torque: | 400 lb-ft | 400 lb-ft |
| Maximum Towing Capacity w/ Standard Engine: | 8,400 lbs4 | 8,400 lbs4 |
| Available Engines: |
|
|
Frequently Asked Questions
What are the expected fuel economy ratings for each engine option in the 2024 F-150?
The 2025 Ford F-150 engines deliver the following EPA-estimated fuel economy ratings:
- 3.5-liter PowerBoost V-6: up to 22/24 MPG (City/Highway)3
- 2.7-liter EcoBoost V-6: up to 19/25 MPG (City/Highway)3
- 3.5-liter EcoBoost V-6: up to 17/25 MPG (City/Highway)3
- 5.0-liter V-8: up to 16/24 MPG (City/Highway)3
What maintenance is required to keep the 2025 F-150's engine performing optimally?
To keep the 2025 F-150's engine performing optimally, make sure you get your oil changed whenever the recommended oil change interval is up, and always follow the manufacturer's maintenance schedule as closely as possible. The Ford F-150 engines deliver extraordinary attributes like a 13,500-pound maximum towing capacity,1 but they aren't out of the ordinary in terms of maintenance needs.
What features are included in the 2025 F-150 to optimize engine performance in snowy or icy conditions?
The 2025 Ford F-150 engines can be paired with selectable drive modes like "Slippery" to optimize their performance in snowy or icy conditions. The AdvanceTrac traction control system is also included on all F-150 models to help optimize performance and safety in slippery winter conditions. For optimal performance when driving in bad weather up north, choose an F-150 with 4WD.
Contact Us to Learn More About the Ford F-150 Vehicles
1Max towing of 13,500 lbs. available on F-150® SuperCrew 6.5’ box 4x4 with available 3.5L EcoBoost® V6 engine. When properly equipped. Requires Tow/Haul Package and Max Tow Axle upgrade. Max towing varies and is based on accessories and vehicle configuration. Payload and towing are independent attributes and may not be achieved simultaneously.
2Max payload of 2,440 lbs. available on F-150® Regular Cab 8' box 4x2 with available 3.5L EcoBoost® V6 engine. When properly equipped. Max payload varies and is based on accessories and vehicle configuration. See label on doorjamb for carrying capacity of a specific vehicle. Payload and towing are independent attributes and may not be achieved simultaneously.
3EPA-estimated city/hwy mpg for the model indicated. See fueleconomy.gov for fuel economy of other engine/transmission combinations. Actual mileage will vary. On plug-in hybrid models and electric models, fuel economy is stated in MPGe. MPGe is the EPA equivalent measure of gasoline fuel efficiency for electric mode operation.
4When properly equipped. See dealer for details.
5Maximum payload capabilities are for properly equipped vehicles with required equipment and vary based on vehicle configuration, accessories, and option content. Horsepower, torque, payload and towing are independent attributes and may not be achieved simultaneously.
